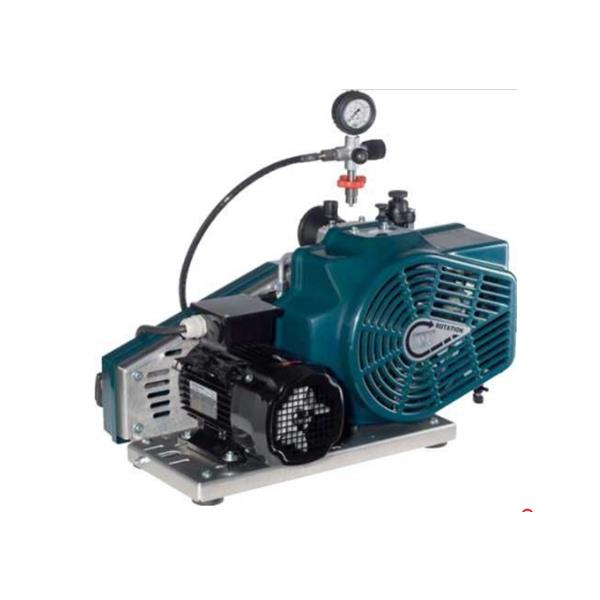

德国进口空气压缩机德国爱安达 LW100
基本信息
产品名称：
德国进口空气压缩机德国爱安达 LW100
英文名称：
国产/进口：
进口
产地/品牌：
德国
型号：
LW100
参考报价：
8000
销售商：
总点击数：
759
更新日期：
2020-06-28
产品类别：
性能参数
德国爱安达呼吸空气压缩机：
1.高精度，将缸体和曲轴箱内壁在机械加工过程中成为一体
2.缸体和曲轴箱之间无泄漏可能性，没有泄漏点
3.高效散热功能减少了变形所带来的磨损
4.可更换缸套筒
LW100型是三级，三缸。空冷，油润滑高压压缩机。
产地：德国
Specifications
>> Fully wired, ready to start with cable and plug, start/stop switch
>> Aluminium frame
>> All pistons with steel piston rings
>> 2 oil/water separators
>> Inter-stage and final stage air coolers
>> Savety valves for each stage
>> Pressure maintaining and non return valve for extended filter duration
>> Filling hose with filling valve and pressure gauge
>> 200/232 bar version with DIN/Yoke connection, 300 bar version with DIN connection
>> Breathing air purification in accordance with EN 12021
Options
>> Auto start
>> Carrying handles
>> Additional filling hose
>> Thermal overload switch
>> Automatic condensation drain
>> 200/300 bar switch over device
>> Automatic stop and hours counter
>> Special voltages / frequencies on request
>> Conversion set petrol/electric drive
Technical Data
1.高精度，将缸体和曲轴箱内壁在机械加工过程中成为一体
2.缸体和曲轴箱之间无泄漏可能性，没有泄漏点
3.高效散热功能减少了变形所带来的磨损
4.可更换缸套筒
LW100型是三级，三缸。空冷，油润滑高压压缩机。
产地：德国
Specifications
>> Fully wired, ready to start with cable and plug, start/stop switch
>> Aluminium frame
>> All pistons with steel piston rings
>> 2 oil/water separators
>> Inter-stage and final stage air coolers
>> Savety valves for each stage
>> Pressure maintaining and non return valve for extended filter duration
>> Filling hose with filling valve and pressure gauge
>> 200/232 bar version with DIN/Yoke connection, 300 bar version with DIN connection
>> Breathing air purification in accordance with EN 12021
Options
>> Auto start
>> Carrying handles
>> Additional filling hose
>> Thermal overload switch
>> Automatic condensation drain
>> 200/300 bar switch over device
>> Automatic stop and hours counter
>> Special voltages / frequencies on request
>> Conversion set petrol/electric drive
Technical Data
| LW 100 E ECO | |
| Type: | Air cooled, reciprocating piston comp. |
| Capacity [litre/min] / [Nm³/h] / [cfm]: | 100 / 6 / 3.5 |
| Max. Pressure [bar]: | 330* |
| RPM [1/min]: | 2300 |
| No of cylinders / No of stages: | 3 / 3 |
| Prime mover type: | 3 Phase E-motor 400V / 50Hz 1) |
| Drive power [kW] / [HP]: | 2.2 / 3.0 |
| Cooling air requirement [Nm³/h]: | 660 |
| Lubrication type: | Splash oil |
| Oil capacity[litre]: | 0.5 |
| Air outlet temperature [°C]: | 6°C above ambient |
| Filter capacity [m3 at + 20°C] 2): | 108 |
| Dimensions L x W x H(cm): | 65 x 39 x 40 |
| Weight [kg]: | 39 |
| Noise level [dB]: | 82 measured at 1 m |
